Overview

ProView DS is a Unified Automation Platform. It includes all modules and tools for Solutions Development  - Unified designer, connectors to data sources, built-in features  for Industrial and Business Operations, Client UI technologies.

The platform delivers multi-platform Runtime in various Deployment Scenarios.

ProView DS Unified Platform Data Sources • 100+ Native Connectors • OPC UA Server/Client • MQTT Broker/Client (SpB) • SQL Databases • REST APIs • Python/.NET SDKs ProView DS Core Unified Designer Single tool • All modules • Git/JSON • Change tracking Four Pillars Methodology UNS Data Model Process Devices/Ops Business Logic/Data UI Displays Applications • SCADA Systems • HMI Solutions • MES Integration • IIoT Platforms • Edge Analytics • Enterprise Dashboards Built-in Features Historian • Alarms • Reports Security • Scripting • Datasets Hot-standby • Store-forward Client Technologies • WPF Desktop (Windows) • WebAssembly (Browser) • HTML5 (Web/Mobile) Deployment Targets .NET 8 (Windows/Linux/macOS) • .NET 4.8 (Windows Legacy) • Docker/Kubernetes • Edge Devices • Cloud • On-Premise

ProView DS Core

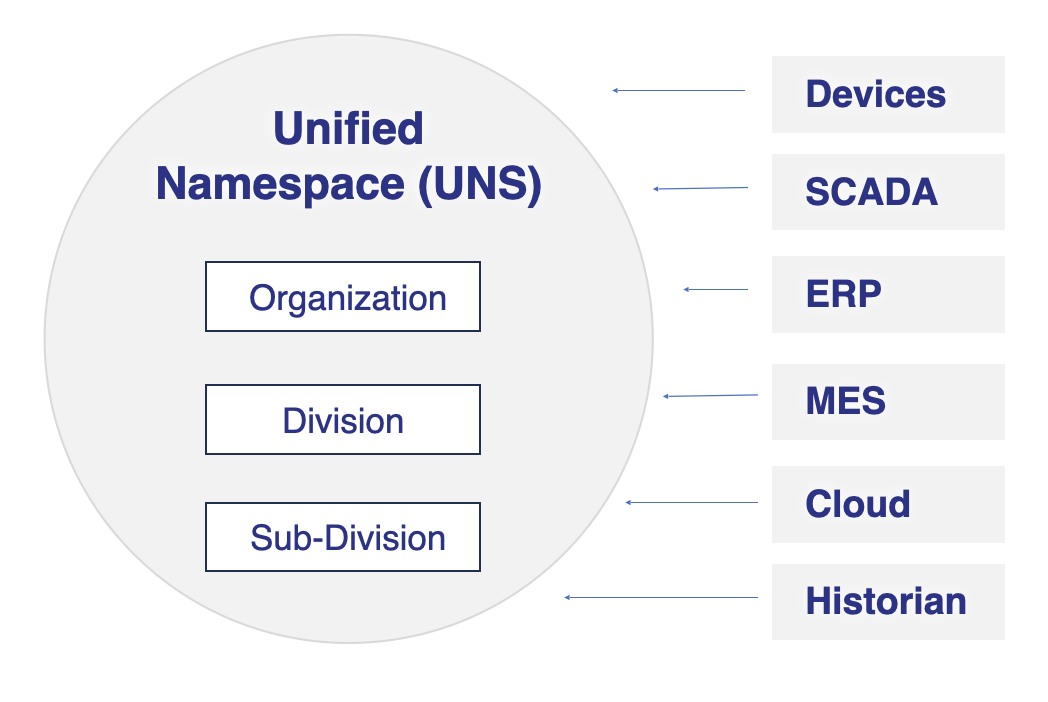

ProView DS kernel is designed upon the concepts of Real-Time In-Memory Database and Unified Namespace.



ProView DS is a Unified Automation Platform. Its main components are:

  • ProView DS Core
    • Designer - Unified Configuration using the Four Pillar Methodology.
    • Runtime - .NET Real-Time database, with Native UNS architecture.
  • Data Sources- Connectivity with 100+ devices and interfaces.
  • Built-In Features - Industrial and Business Operations modules
  • Client Technologies - Design once, run everywhere.

→ Learn more about Real-Time Tag Database (Concept)

→ Learn more about Unified Namespace Architecture (Concept)

Solutions Development

→ Solutions Development - ProView DS manages the complete Solution Lifecycle, from development through  production.

Deployment Scenarios

→ Deployment Scenarios:- ProView DS provides versatile deployment architectures tailored to your operational requirements.


Aim high, start simple, scale without limits.
